Solder Mask

As described in Section 3.1, a non-solder mask defined pad (NSMD) is recommended over solder mask defined (SMD) to produce consistent solder joint geometries. The solder mask can be designed around each individual lead finger for lead pitches 0,65 mm and above. Check with your board fabrication site for solder-mask openings, but typically the NSMD openings are 0,1 mm to 0,14 mm larger than the lead finger pad size. For a lead pitch of 0,5 mm, it is recommended to design the solder mask around all pads on each side with a clearance of 0,05 mm or smaller, so consult your board fabrication site for tolerance requirements.

To maximize the solder mask in the corner regions, it is necessary to round the inner corner on each row (see Figure 3-5). This ensures sufficient solder mask in the corner of the PCB footprint design and also prevents the metal feature from encroaching beyond an air gap of 0,2 mm. In addition, it has been observed that some QFN configurations utilize an exposed metal pin 1 feature beneath the component, which has a potential of shorting to a via if present in this region. Therefore, TI recommends maintaining a routing and via keep-out area next to pin 1 on all QFN designs to guard against this risk and offer more flexibility when selecting different suppliers (see Figure 3-5).

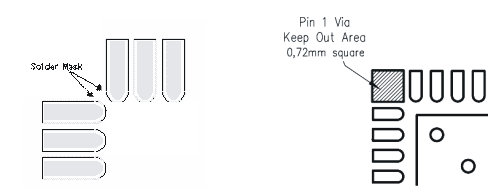

GUID-6A01A412-D69B-4E9C-A177-D18A96B0C0BD-low.gifFigure 3-5 PCB Solder Mask and Keep-Out Area Example
