A.6 CD4066B Characteristics

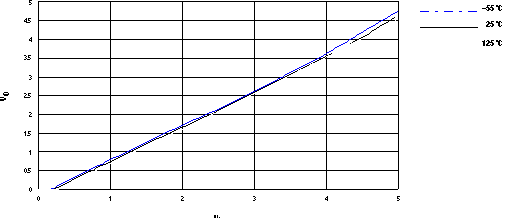

GUID-CA346B4D-4F4A-45F3-BAB4-BC29AF49F285-low.gifFigure 10-18 VO vs VI, VCC = 5 V (CD4066B)
GUID-AFB2FB2C-572C-4771-9F88-D4CF423E1B67-low.gifFigure 10-19 ron vs VI, VCC = 5 V (CD4066B)
GUID-A7806E9E-D144-4153-AE09-A0DEB2F510E1-low.gifFigure 10-20 VO vs VI, VCC = 10 V (CD4066B)

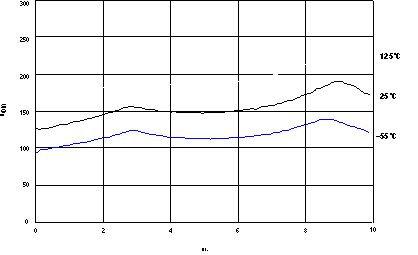

GUID-41B8F023-2BFB-4BC5-A066-2DE22EEBCAB9-low.gifFigure 10-21 ron vs VI, VCC = 10 V (CD4066B)
GUID-A9AA9C90-EEFA-4C21-B3B1-2AA449688840-low.gifFigure 10-22 VO vs VI, VCC = 15 V (CD4066B)
GUID-3BD9D5C3-948A-48C3-B39D-52D5A5F21616-low.gifFigure 10-23 ron vs VI, VCC = 15 V (CD4066B)
Table 10-9 CD4066B Analog Parameter Measurement Data
VCC/VSS (1)Frequency ResponseTotal Harmonic DistortionCrosstalkCharge Injection(2)Feedthrough
1 kHzBetween SwitchesEnable to Output
5 V/-5 V40 MHz0.04%-50 dB at 8 MHz50 mV-50 dB at 1 MHz
10 V/0 V141 MHz(2)0.032%(2)-75 dB(2)35 mV(2)18.8 pC-65 dB(2)
(1) Data-sheet values for CD4066B, except as noted.
(2) Post characterization measurement for CD4066B. Frequency response, THD, crosstalk, and feedthrough measured using load conditions specified in Appendix A, in order to make a more valid comparison with other devices in this report.
